Material:

Al3ZnNi12

ID:

MMD-3322

Explore database:

Compounds with the same formula: Al3ZnNi12 (1 entry found)
Compounds with the same elements: Al-Zn-Ni (1 entry found)
Navigation:
Space group | Lattice parameters | Thermodynamic properties | Phase diagram | Magnetic properties | Atomic positions and site-specific magnetic data | Pair-wise magnetic data | Methods | References

Space group:

Crystal system

tetragonal

Space group number

123

Hermann-Mauguin

P4/mmm

Hall

-P 4 2

Point group

4/mmm

Structure data:

Normalized formula

Al3ZnNi12

The number of formula units per unit cell

1

The total number of atoms per unit cell

16

The number of inequivalent sites per unit cell

8

Structure search

MP

Lattice parameters:

a (Å)

3.5696

b (Å)

3.5696

c (Å)

14.2632

α (deg.)

90.000

β (deg.)

90.000

γ (deg.)

90.000

Volume (Å3)

181.747

Density (g/cm3)

7.772

Crystal structure visualization:

Thermodynamic properties:

DFT calculations (details)

Formation energy (vs. elemental phases)

-351.4 meV/atom

Formation energy above hull

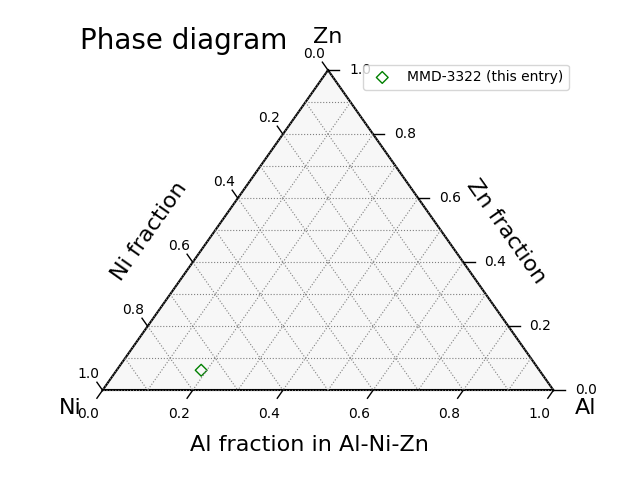

Phase diagram:

Phase diagram
The convex hull is temporarily not available while we perform maintenance.

Related structures:

Compounds with the same formula: Al3ZnNi12

1 entry found

Compounds with the same elements: Al-Zn-Ni

1 entry found

Binary compounds in Al-Zn system

No entries found

Binary compounds in Al-Ni system

13 entries found

Binary compounds in Zn-Ni system

10 entries found

Magnetic properties:

DFT calculations (details)

Magnetic ordering

Ferromagnetic

Total magnetic moment

3.52 μB/cell

Averaged magnetic moment

0.22 μB/atom

Magnetic polarization, Js = μ0Ms

0.23 T (= 183.0 emu/cm3)
LMTO-GF calculations (details)

Curie temperature, TC

DFT calculations (details)

Magnetic easy axis

Magnetic hardness parameter, κ

Atomic positions (fractional coordinates) and site-specific magnetic data:

index species w x y z m (μB) Esoc100 (meV) Esoc001 (meV)
1 Al 2g 0.000000 0.000000 0.249880 -0.02 . .
2 Al 2g 0.000000 0.000000 0.500000 -0.02 . .
3 Al 1b 0.000000 0.000000 0.750120 -0.02 . .
4 Zn 1a 0.000000 0.000000 0.000000 -0.01 . .
5 Ni 1c 0.500000 0.500000 0.000000 0.42 . .
6 Ni 2h 0.500000 0.500000 0.250089 0.31 . .
7 Ni 2h 0.500000 0.500000 0.500000 0.28 . .
8 Ni 1d 0.500000 0.500000 0.749911 0.31 . .
9 Ni 4i 0.500000 0.000000 0.125267 0.36 . .
10 Ni 4i 0.500000 0.000000 0.374976 0.28 . .
11 Ni 4i 0.500000 0.000000 0.625024 0.28 . .
12 Ni 4i 0.500000 0.000000 0.874733 0.36 . .
13 Ni 4i 0.000000 0.500000 0.125267 0.36 . .
14 Ni 4i 0.000000 0.500000 0.374976 0.28 . .
15 Ni 4i 0.000000 0.500000 0.625024 0.28 . .
16 Ni 4i 0.000000 0.500000 0.874733 0.36 . .
w: site multiplicity (the number of equivalent positions) and Wyckoff letter (a label for site symmetry)
m: local magnetic moment
Esoc100 (001): Spin-orbit coupling energy for the magnetization oriented along the crystallographic a (c) axis
(Individual Esoc values are temporarily not available while we perform maintenance.)
Terms and conditions

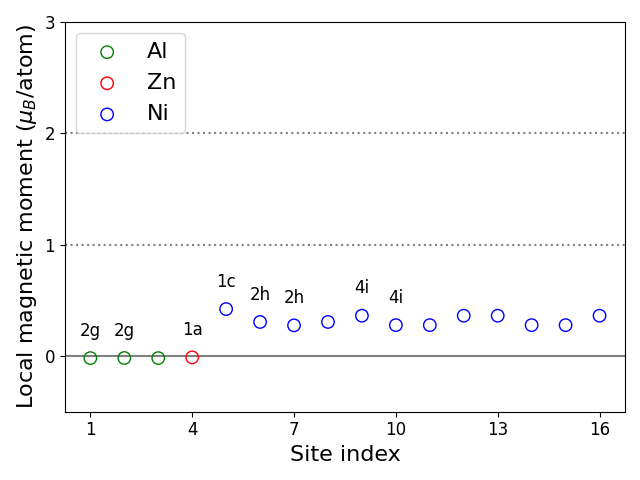

Site-resolved magnetic moments:

Local magnetic moments

Pair-wise magnetic data:

site i site j distance (Å) Jij (meV)
1 Al 2g 2 Al 2g 3.57 .
1 Al 2g 3 Al 1b 7.13 .
1 Al 2g 4 Zn 1a 3.56 .
1 Al 2g 5 Ni 1c 4.37 .
1 Al 2g 6 Ni 2h 2.52 .
1 Al 2g 7 Ni 2h 4.37 .
1 Al 2g 8 Ni 1d 7.56 .
1 Al 2g 9 Ni 4i 2.52 .
1 Al 2g 10 Ni 4i 2.52 .
1 Al 2g 11 Ni 4i 5.64 .
1 Al 2g 12 Ni 4i 5.64 .
1 Al 2g 13 Ni 4i 2.52 .
1 Al 2g 14 Ni 4i 2.52 .
1 Al 2g 15 Ni 4i 5.64 .
1 Al 2g 16 Ni 4i 5.64 .
2 Al 2g 3 Al 1b 3.57 .
2 Al 2g 4 Zn 1a 7.13 .
2 Al 2g 5 Ni 1c 7.57 .
2 Al 2g 6 Ni 2h 4.37 .
2 Al 2g 7 Ni 2h 2.52 .
2 Al 2g 8 Ni 1d 4.37 .
2 Al 2g 9 Ni 4i 5.64 .
2 Al 2g 10 Ni 4i 2.52 .
2 Al 2g 11 Ni 4i 2.52 .
2 Al 2g 12 Ni 4i 5.64 .
2 Al 2g 13 Ni 4i 5.64 .
2 Al 2g 14 Ni 4i 2.52 .
2 Al 2g 15 Ni 4i 2.52 .
2 Al 2g 16 Ni 4i 5.64 .
3 Al 1b 4 Zn 1a 3.56 .
3 Al 1b 5 Ni 1c 4.37 .
3 Al 1b 6 Ni 2h 7.56 .
3 Al 1b 7 Ni 2h 4.37 .
3 Al 1b 8 Ni 1d 2.52 .
3 Al 1b 9 Ni 4i 5.64 .
3 Al 1b 10 Ni 4i 5.64 .
3 Al 1b 11 Ni 4i 2.52 .
3 Al 1b 12 Ni 4i 2.52 .
3 Al 1b 13 Ni 4i 5.64 .
3 Al 1b 14 Ni 4i 5.64 .
3 Al 1b 15 Ni 4i 2.52 .
3 Al 1b 16 Ni 4i 2.52 .
4 Zn 1a 5 Ni 1c 2.52 .
4 Zn 1a 6 Ni 2h 4.37 .
4 Zn 1a 7 Ni 2h 7.57 .
4 Zn 1a 8 Ni 1d 4.37 .
4 Zn 1a 9 Ni 4i 2.53 .
4 Zn 1a 10 Ni 4i 5.64 .
4 Zn 1a 11 Ni 4i 5.64 .
4 Zn 1a 12 Ni 4i 2.53 .
4 Zn 1a 13 Ni 4i 2.53 .
4 Zn 1a 14 Ni 4i 5.64 .
4 Zn 1a 15 Ni 4i 5.64 .
4 Zn 1a 16 Ni 4i 2.53 .
5 Ni 1c 6 Ni 2h 3.57 .
5 Ni 1c 7 Ni 2h 7.13 .
5 Ni 1c 8 Ni 1d 3.57 .
5 Ni 1c 9 Ni 4i 2.53 .
5 Ni 1c 10 Ni 4i 5.64 .
5 Ni 1c 11 Ni 4i 5.64 .
5 Ni 1c 12 Ni 4i 2.53 .
5 Ni 1c 13 Ni 4i 2.53 .
5 Ni 1c 14 Ni 4i 5.64 .
5 Ni 1c 15 Ni 4i 5.64 .
5 Ni 1c 16 Ni 4i 2.53 .
6 Ni 2h 7 Ni 2h 3.56 .
6 Ni 2h 8 Ni 1d 7.13 .
6 Ni 2h 9 Ni 4i 2.52 .
6 Ni 2h 10 Ni 4i 2.52 .
6 Ni 2h 11 Ni 4i 5.64 .
6 Ni 2h 12 Ni 4i 5.64 .
6 Ni 2h 13 Ni 4i 2.52 .
6 Ni 2h 14 Ni 4i 2.52 .
6 Ni 2h 15 Ni 4i 5.64 .
6 Ni 2h 16 Ni 4i 5.64 .
7 Ni 2h 8 Ni 1d 3.56 .
7 Ni 2h 9 Ni 4i 5.64 .
7 Ni 2h 10 Ni 4i 2.52 .
7 Ni 2h 11 Ni 4i 2.52 .
7 Ni 2h 12 Ni 4i 5.64 .
7 Ni 2h 13 Ni 4i 5.64 .
7 Ni 2h 14 Ni 4i 2.52 .
7 Ni 2h 15 Ni 4i 2.52 .
7 Ni 2h 16 Ni 4i 5.64 .
8 Ni 1d 9 Ni 4i 5.64 .
8 Ni 1d 10 Ni 4i 5.64 .
8 Ni 1d 11 Ni 4i 2.52 .
8 Ni 1d 12 Ni 4i 2.52 .
8 Ni 1d 13 Ni 4i 5.64 .
8 Ni 1d 14 Ni 4i 5.64 .
8 Ni 1d 15 Ni 4i 2.52 .
8 Ni 1d 16 Ni 4i 2.52 .
9 Ni 4i 10 Ni 4i 3.56 .
9 Ni 4i 11 Ni 4i 7.13 .
9 Ni 4i 12 Ni 4i 3.57 .
9 Ni 4i 13 Ni 4i 2.52 .
9 Ni 4i 14 Ni 4i 4.37 .
9 Ni 4i 15 Ni 4i 7.56 .
9 Ni 4i 16 Ni 4i 4.37 .
10 Ni 4i 11 Ni 4i 3.57 .
10 Ni 4i 12 Ni 4i 7.13 .
10 Ni 4i 13 Ni 4i 4.37 .
10 Ni 4i 14 Ni 4i 2.52 .
10 Ni 4i 15 Ni 4i 4.37 .
10 Ni 4i 16 Ni 4i 7.56 .
11 Ni 4i 12 Ni 4i 3.56 .
11 Ni 4i 13 Ni 4i 7.56 .
11 Ni 4i 14 Ni 4i 4.37 .
11 Ni 4i 15 Ni 4i 2.52 .
11 Ni 4i 16 Ni 4i 4.37 .
12 Ni 4i 13 Ni 4i 4.37 .
12 Ni 4i 14 Ni 4i 7.56 .
12 Ni 4i 15 Ni 4i 4.37 .
12 Ni 4i 16 Ni 4i 2.52 .
13 Ni 4i 14 Ni 4i 3.56 .
13 Ni 4i 15 Ni 4i 7.13 .
13 Ni 4i 16 Ni 4i 3.57 .
14 Ni 4i 15 Ni 4i 3.57 .
14 Ni 4i 16 Ni 4i 7.13 .
15 Ni 4i 16 Ni 4i 3.56 .
Jij: magnetic exchange parameter between site i and j (Individual Jij values are temporarily not available while we perform maintenance.)
Export data (under construction)
  • csv
  • json
  • yaml
Terms and conditions

Pair-resolved magnetic exchange parameters:


Diagram is not available for this entry.

Individual exchange parameters:


Diagram is not available for this entry.

Methods:

DFT calculations

  • exchange-correlation energy functional: GGA-PBE
  • pseudopotential type: PAW
  • cutoff energy: 65.0 Ry
  • k-point grid: (kx, ky, kz) = (None, None, None) for magnetic anisotropy calculations
  • package: QE (v6.3)

LMTO-GF calculations

  • k-point grid: (kx, ky, kz) =
  • energy mesh: 41 points on an elliptical contour
  • package: Questaal (v7)

References:

References

Materials Project: mp-1229039
You can download and use the data of this database for your scientific work, provided that you express proper acknowledgements:
