Material:

CuNi3N

ID:

MMD-3089

Explore database:

Compounds with the same formula: CuNi3N (1 entry found)
Compounds with the same elements: Cu-Ni-N (1 entry found)
Navigation:
Space group | Lattice parameters | Thermodynamic properties | Phase diagram | Magnetic properties | Atomic positions and site-specific magnetic data | Pair-wise magnetic data | Methods | References

Space group:

Crystal system

cubic

Space group number

221

Hermann-Mauguin

Pm-3m

Hall

-P 4 2 3

Point group

m-3m

Structure data:

Normalized formula

CuNi3N

The number of formula units per unit cell

1

The total number of atoms per unit cell

5

The number of inequivalent sites per unit cell

3

Structure search

MP

Lattice parameters:

a (Å)

3.7299

b (Å)

3.7299

c (Å)

3.7299

α (deg.)

90.000

β (deg.)

90.000

γ (deg.)

90.000

Volume (Å3)

51.890

Density (g/cm3)

8.116

Crystal structure visualization:

Thermodynamic properties:

DFT calculations (details)

Formation energy (vs. elemental phases)

6.8 meV/atom

Formation energy above hull

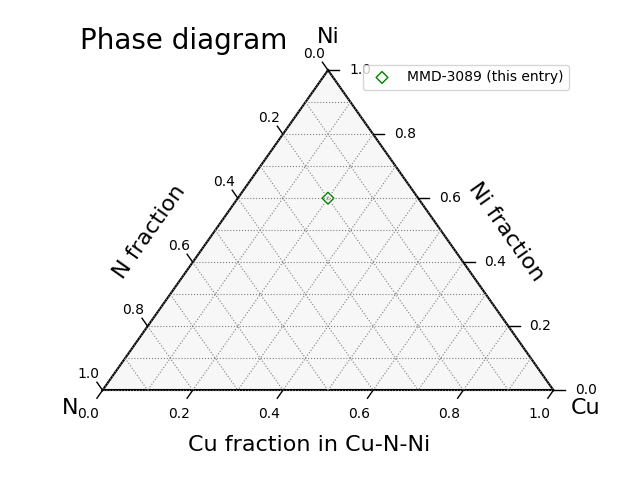

Phase diagram:

Phase diagram
The convex hull is temporarily not available while we perform maintenance.

Related structures:

Compounds with the same formula: CuNi3N

1 entry found

Compounds with the same elements: Cu-Ni-N

1 entry found

Binary compounds in Cu-Ni system

6 entries found

Binary compounds in Cu-N system

No entries found

Binary compounds in Ni-N system

10 entries found

Magnetic properties:

DFT calculations (details)

Magnetic ordering

Ferromagnetic

Total magnetic moment

0.03 μB/cell

Averaged magnetic moment

0.01 μB/atom

Magnetic polarization, Js = μ0Ms

0.01 T (= 8.0 emu/cm3)
LMTO-GF calculations (details)

Curie temperature, TC

DFT calculations (details)

Magnetic easy axis

Magnetic hardness parameter, κ

Atomic positions (fractional coordinates) and site-specific magnetic data:

index species w x y z m (μB) Esoc100 (meV) Esoc001 (meV)
1 Cu 1a 0.000000 0.000000 0.000000 -0.00 . .
2 Ni 3c 0.000000 0.500000 0.500000 0.01 . .
3 Ni 3c 0.500000 0.500000 0.000000 0.01 . .
4 Ni 3c 0.500000 0.000000 0.500000 0.01 . .
5 N 1b 0.500000 0.500000 0.500000 0.00 . .
w: site multiplicity (the number of equivalent positions) and Wyckoff letter (a label for site symmetry)
m: local magnetic moment
Esoc100 (001): Spin-orbit coupling energy for the magnetization oriented along the crystallographic a (c) axis
(Individual Esoc values are temporarily not available while we perform maintenance.)
Terms and conditions

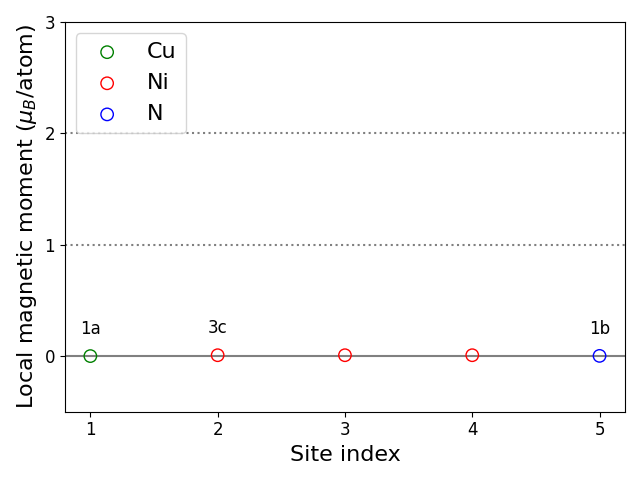

Site-resolved magnetic moments:

Local magnetic moments

Pair-wise magnetic data:

site i site j distance (Å) Jij (meV)
1 Cu 1a 2 Ni 3c 2.64 .
1 Cu 1a 3 Ni 3c 2.64 .
1 Cu 1a 4 Ni 3c 2.64 .
1 Cu 1a 5 N 1b 3.23 .
2 Ni 3c 3 Ni 3c 2.64 .
2 Ni 3c 4 Ni 3c 2.64 .
2 Ni 3c 5 N 1b 1.86 .
3 Ni 3c 4 Ni 3c 2.64 .
3 Ni 3c 5 N 1b 1.86 .
4 Ni 3c 5 N 1b 1.86 .
Jij: magnetic exchange parameter between site i and j (Individual Jij values are temporarily not available while we perform maintenance.)
Export data (under construction)
  • csv
  • json
  • yaml
Terms and conditions

Pair-resolved magnetic exchange parameters:


Diagram is not available for this entry.

Individual exchange parameters:


Diagram is not available for this entry.

Methods:

DFT calculations

  • exchange-correlation energy functional: GGA-PBE
  • pseudopotential type: PAW
  • cutoff energy: 65.0 Ry
  • k-point grid: (kx, ky, kz) = (None, None, None) for magnetic anisotropy calculations
  • package: QE (v6.3)

LMTO-GF calculations

  • k-point grid: (kx, ky, kz) =
  • energy mesh: 41 points on an elliptical contour
  • package: Questaal (v7)

References:

References

Materials Project: mp-1017556
You can download and use the data of this database for your scientific work, provided that you express proper acknowledgements:
