Material:

Fe(CoN)2

ID:

MMD-2672

Explore database:

Compounds with the same formula: Fe(CoN)2 (2 entries found)
Compounds with the same elements: Fe-Co-N (272 entries found)
Navigation:
Space group | Lattice parameters | Thermodynamic properties | Phase diagram | Magnetic properties | Atomic positions and site-specific magnetic data | Pair-wise magnetic data | Methods | References

Space group:

Crystal system

trigonal

Space group number

164

Hermann-Mauguin

P-3m1

Hall

-P 3 2"

Point group

-3m

Structure data:

Normalized formula

Fe(CoN)2

The number of formula units per unit cell

1

The total number of atoms per unit cell

5

The number of inequivalent sites per unit cell

3

Structure search

MP

Lattice parameters:

a (Å)

2.8148

b (Å)

2.8148

c (Å)

6.4931

α (deg.)

90.000

β (deg.)

90.000

γ (deg.)

120.000

Volume (Å3)

44.555

Density (g/cm3)

7.518

Crystal structure visualization:

Thermodynamic properties:

DFT calculations (details)

Formation energy (vs. elemental phases)

263.1 meV/atom

Formation energy above hull

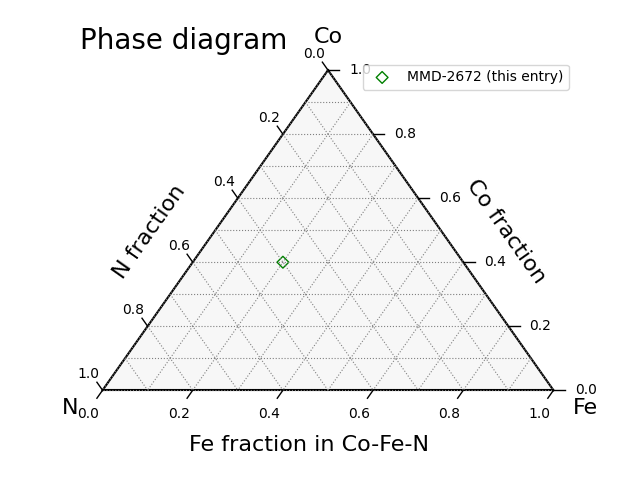

Phase diagram:

Phase diagram
The convex hull is temporarily not available while we perform maintenance.

Related structures:

Compounds with the same formula: Fe(CoN)2

2 entries found

Compounds with the same elements: Fe-Co-N

272 entries found

Binary compounds in Fe-Co system

11 entries found

Binary compounds in Fe-N system

38 entries found

Binary compounds in Co-N system

183 entries found

Magnetic properties:

DFT calculations (details)

Magnetic ordering

Ferromagnetic

Total magnetic moment

1.56 μB/cell

Averaged magnetic moment

0.31 μB/atom

Magnetic polarization, Js = μ0Ms

0.41 T (= 326.3 emu/cm3)
LMTO-GF calculations (details)

Curie temperature, TC

DFT calculations (details)

Magnetic anisotropy constant, Ka-c

0.90 MJ/m3 (= 0.25 meV/cell)

Magnetic easy axis

c

Magnetic hardness parameter, κ

2.60

Atomic positions (fractional coordinates) and site-specific magnetic data:

index species w x y z m (μB) Esoc100 (meV) Esoc001 (meV)
1 Fe 1b 0.000000 0.000000 0.500000 1.46 . .
2 Co 2d 0.666667 0.333333 0.162343 -0.03 . .
3 Co 2d 0.333333 0.666667 0.837657 -0.03 . .
4 N 2d 0.666667 0.333333 0.692100 0.04 . .
5 N 2d 0.333333 0.666667 0.307900 0.04 . .
w: site multiplicity (the number of equivalent positions) and Wyckoff letter (a label for site symmetry)
m: local magnetic moment
Esoc100 (001): Spin-orbit coupling energy for the magnetization oriented along the crystallographic a (c) axis
(Individual Esoc values are temporarily not available while we perform maintenance.)
Terms and conditions

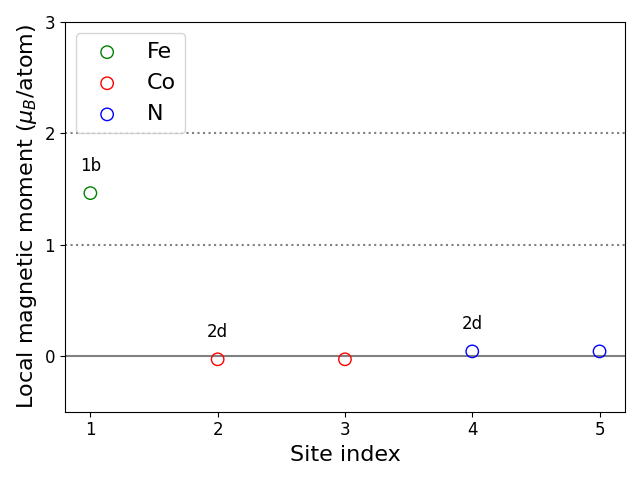

Site-resolved magnetic moments:

Local magnetic moments

Pair-wise magnetic data:

site i site j distance (Å) Jij (meV)
1 Fe 1b 2 Co 2d 2.73 .
1 Fe 1b 3 Co 2d 2.73 .
1 Fe 1b 4 N 2d 2.05 .
1 Fe 1b 5 N 2d 2.05 .
2 Co 2d 3 Co 2d 2.66 .
2 Co 2d 4 N 2d 3.05 .
2 Co 2d 5 N 2d 1.88 .
3 Co 2d 4 N 2d 1.88 .
3 Co 2d 5 N 2d 3.05 .
4 N 2d 5 N 2d 2.98 .
Jij: magnetic exchange parameter between site i and j (Individual Jij values are temporarily not available while we perform maintenance.)
Export data (under construction)
  • csv
  • json
  • yaml
Terms and conditions

Pair-resolved magnetic exchange parameters:


Diagram is not available for this entry.

Individual exchange parameters:


Diagram is not available for this entry.

Methods:

DFT calculations

  • exchange-correlation energy functional: GGA-PBE
  • pseudopotential type: PAW
  • cutoff energy: 65.0 Ry
  • k-point grid: (kx, ky, kz) = (26, 26, 10) for magnetic anisotropy calculations
  • package: QE (v6.3)

LMTO-GF calculations

  • k-point grid: (kx, ky, kz) =
  • energy mesh: 41 points on an elliptical contour
  • package: Questaal (v7)

References:

References

Materials Project: mp-1245567
You can download and use the data of this database for your scientific work, provided that you express proper acknowledgements:
