Material:

V(CoSe2)2

ID:

MMD-1708

Explore database:

Compounds with the same formula: V(CoSe2)2 (1 entry found)
Compounds with the same elements: V-Co-Se (2 entries found)
Navigation:
Space group | Lattice parameters | Thermodynamic properties | Phase diagram | Magnetic properties | Atomic positions and site-specific magnetic data | Pair-wise magnetic data | Methods | References

Space group:

Crystal system

monoclinic

Space group number

12

Hermann-Mauguin

C2/m

Hall

-C 2y

Point group

2/m

Structure data:

Normalized formula

V(CoSe2)2

The number of formula units per unit cell

2

The total number of atoms per unit cell

14

The number of inequivalent sites per unit cell

4

Structure search

MP

Lattice parameters:

a (Å)

12.5545

b (Å)

3.5012

c (Å)

6.3483

α (deg.)

90.000

β (deg.)

120.230

γ (deg.)

90.000

Volume (Å3)

241.101

Density (g/cm3)

6.676

Crystal structure visualization:

Thermodynamic properties:

DFT calculations (details)

Formation energy (vs. elemental phases)

-412.1 meV/atom

Formation energy above hull

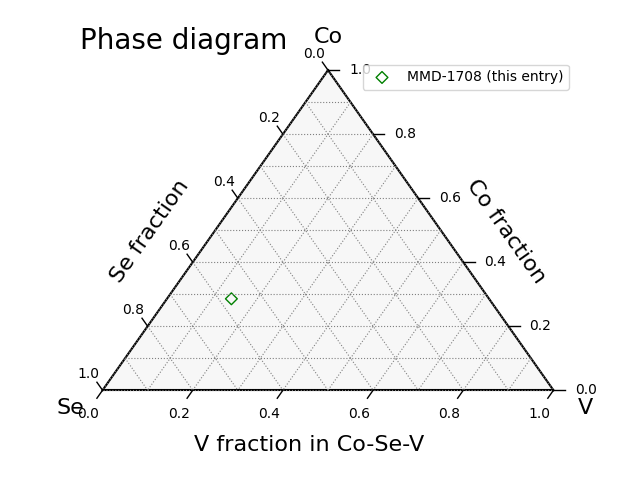

Phase diagram:

Phase diagram
The convex hull is temporarily not available while we perform maintenance.

Related structures:

Compounds with the same formula: V(CoSe2)2

1 entry found

Compounds with the same elements: V-Co-Se

2 entries found

Binary compounds in V-Co system

7 entries found

Binary compounds in V-Se system

No entries found

Binary compounds in Co-Se system

11 entries found

Magnetic properties:

DFT calculations (details)

Magnetic ordering

Ferromagnetic

Total magnetic moment

2.21 μB/cell

Averaged magnetic moment

0.16 μB/atom

Magnetic polarization, Js = μ0Ms

0.11 T (= 87.5 emu/cm3)
LMTO-GF calculations (details)

Curie temperature, TC

DFT calculations (details)

Magnetic easy axis

Magnetic hardness parameter, κ

Atomic positions (fractional coordinates) and site-specific magnetic data:

index species w x y z m (μB) Esoc100 (meV) Esoc001 (meV)
1 V 2a 0.000000 0.000000 0.000000 1.01 . .
2 V 2a 0.500000 0.500000 0.000000 1.01 . .
3 Co 4i 0.742789 0.000000 0.725963 -0.02 . .
4 Co 4i 0.757211 0.500000 0.274037 -0.02 . .
5 Co 4i 0.242789 0.500000 0.725963 -0.02 . .
6 Co 4i 0.257211 0.000000 0.274037 -0.02 . .
7 Se 4i 0.867779 0.000000 0.542752 -0.01 . .
8 Se 4i 0.632221 0.500000 0.457248 -0.01 . .
9 Se 4i 0.635964 0.000000 0.965524 -0.02 . .
10 Se 4i 0.864036 0.500000 0.034476 -0.02 . .
11 Se 4i 0.367779 0.500000 0.542752 -0.01 . .
12 Se 4i 0.132221 0.000000 0.457248 -0.01 . .
13 Se 4i 0.135964 0.500000 0.965524 -0.02 . .
14 Se 4i 0.364036 0.000000 0.034476 -0.02 . .
w: site multiplicity (the number of equivalent positions) and Wyckoff letter (a label for site symmetry)
m: local magnetic moment
Esoc100 (001): Spin-orbit coupling energy for the magnetization oriented along the crystallographic a (c) axis
(Individual Esoc values are temporarily not available while we perform maintenance.)
Terms and conditions

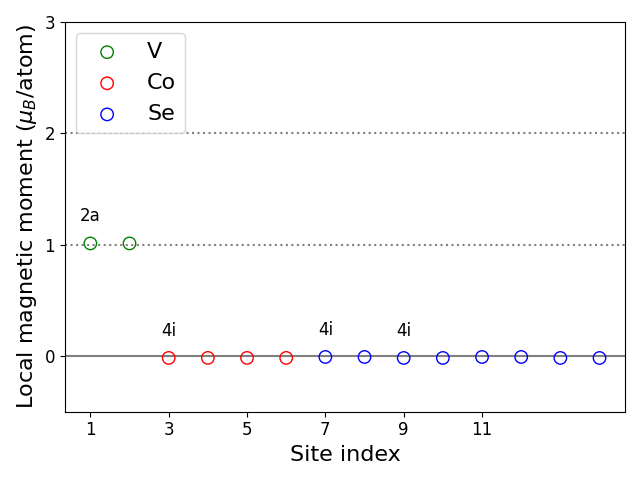

Site-resolved magnetic moments:

Local magnetic moments

Pair-wise magnetic data:

site i site j distance (Å) Jij (meV)
1 V 2a 2 V 2a 6.52 .
1 V 2a 3 Co 4i 2.79 .
1 V 2a 4 Co 4i 4.41 .
1 V 2a 5 Co 4i 4.41 .
1 V 2a 6 Co 4i 2.79 .
1 V 2a 7 Se 4i 2.52 .
1 V 2a 8 Se 4i 4.50 .
1 V 2a 9 Se 4i 4.46 .
1 V 2a 10 Se 4i 2.53 .
1 V 2a 11 Se 4i 4.50 .
1 V 2a 12 Se 4i 2.52 .
1 V 2a 13 Se 4i 2.53 .
1 V 2a 14 Se 4i 4.46 .
2 V 2a 3 Co 4i 4.41 .
2 V 2a 4 Co 4i 2.79 .
2 V 2a 5 Co 4i 2.79 .
2 V 2a 6 Co 4i 4.41 .
2 V 2a 7 Se 4i 4.50 .
2 V 2a 8 Se 4i 2.52 .
2 V 2a 9 Se 4i 2.53 .
2 V 2a 10 Se 4i 4.46 .
2 V 2a 11 Se 4i 2.52 .
2 V 2a 12 Se 4i 4.50 .
2 V 2a 13 Se 4i 4.46 .
2 V 2a 14 Se 4i 2.53 .
3 Co 4i 4 Co 4i 3.44 .
3 Co 4i 5 Co 4i 6.52 .
3 Co 4i 6 Co 4i 5.27 .
3 Co 4i 7 Se 4i 2.38 .
3 Co 4i 8 Se 4i 2.35 .
3 Co 4i 9 Se 4i 2.48 .
3 Co 4i 10 Se 4i 2.49 .
3 Co 4i 11 Se 4i 4.59 .
3 Co 4i 12 Se 4i 4.75 .
3 Co 4i 13 Se 4i 4.71 .
3 Co 4i 14 Se 4i 4.57 .
4 Co 4i 5 Co 4i 5.27 .
4 Co 4i 6 Co 4i 6.52 .
4 Co 4i 7 Se 4i 2.35 .
4 Co 4i 8 Se 4i 2.38 .
4 Co 4i 9 Se 4i 2.49 .
4 Co 4i 10 Se 4i 2.48 .
4 Co 4i 11 Se 4i 4.75 .
4 Co 4i 12 Se 4i 4.59 .
4 Co 4i 13 Se 4i 4.57 .
4 Co 4i 14 Se 4i 4.71 .
5 Co 4i 6 Co 4i 3.44 .
5 Co 4i 7 Se 4i 4.59 .
5 Co 4i 8 Se 4i 4.75 .
5 Co 4i 9 Se 4i 4.71 .
5 Co 4i 10 Se 4i 4.57 .
5 Co 4i 11 Se 4i 2.38 .
5 Co 4i 12 Se 4i 2.35 .
5 Co 4i 13 Se 4i 2.48 .
5 Co 4i 14 Se 4i 2.49 .
6 Co 4i 7 Se 4i 4.75 .
6 Co 4i 8 Se 4i 4.59 .
6 Co 4i 9 Se 4i 4.57 .
6 Co 4i 10 Se 4i 4.71 .
6 Co 4i 11 Se 4i 2.35 .
6 Co 4i 12 Se 4i 2.38 .
6 Co 4i 13 Se 4i 2.49 .
6 Co 4i 14 Se 4i 2.48 .
7 Se 4i 8 Se 4i 3.24 .
7 Se 4i 9 Se 4i 3.34 .
7 Se 4i 10 Se 4i 3.60 .
7 Se 4i 11 Se 4i 6.52 .
7 Se 4i 12 Se 4i 3.62 .
7 Se 4i 13 Se 4i 3.54 .
7 Se 4i 14 Se 4i 5.38 .
8 Se 4i 9 Se 4i 3.60 .
8 Se 4i 10 Se 4i 3.34 .
8 Se 4i 11 Se 4i 3.62 .
8 Se 4i 12 Se 4i 6.52 .
8 Se 4i 13 Se 4i 5.38 .
8 Se 4i 14 Se 4i 3.54 .
9 Se 4i 10 Se 4i 3.19 .
9 Se 4i 11 Se 4i 3.54 .
9 Se 4i 12 Se 4i 5.38 .
9 Se 4i 13 Se 4i 6.52 .
9 Se 4i 14 Se 4i 3.65 .
10 Se 4i 11 Se 4i 5.38 .
10 Se 4i 12 Se 4i 3.54 .
10 Se 4i 13 Se 4i 3.65 .
10 Se 4i 14 Se 4i 6.52 .
11 Se 4i 12 Se 4i 3.24 .
11 Se 4i 13 Se 4i 3.34 .
11 Se 4i 14 Se 4i 3.60 .
12 Se 4i 13 Se 4i 3.60 .
12 Se 4i 14 Se 4i 3.34 .
13 Se 4i 14 Se 4i 3.19 .
Jij: magnetic exchange parameter between site i and j (Individual Jij values are temporarily not available while we perform maintenance.)
Export data (under construction)
  • csv
  • json
  • yaml
Terms and conditions

Pair-resolved magnetic exchange parameters:


Diagram is not available for this entry.

Individual exchange parameters:


Diagram is not available for this entry.

Methods:

DFT calculations

  • exchange-correlation energy functional: GGA-PBE
  • pseudopotential type: PAW
  • cutoff energy: 65.0 Ry
  • k-point grid: (kx, ky, kz) = (None, None, None) for magnetic anisotropy calculations
  • package: QE (v6.3)

LMTO-GF calculations

  • k-point grid: (kx, ky, kz) =
  • energy mesh: 41 points on an elliptical contour
  • package: Questaal (v7)

References:

References

Materials Project: mp-1025322
You can download and use the data of this database for your scientific work, provided that you express proper acknowledgements:
